Critique of Singapore Age-Sex Pyramid
Objective
The objective of this exercise is to critique and improve an Age-Sex Pyramid Analytic Visualization of Singapore of the year 2022. The output is to recreate a Trellis Chart Age-Sex Pyramid through R-Studios by using ggplot2, ggplot2 extensions and tidyverse packages.
The visualization is created using the Singapore Residents by Planning Area / Sub-zone, Age Group, Sex and Type of Dwelling, June 2022 (Singstat).
Note
The output should be focused as a static Trellis Chart without filter interactivity.
Original Visualization and Critique

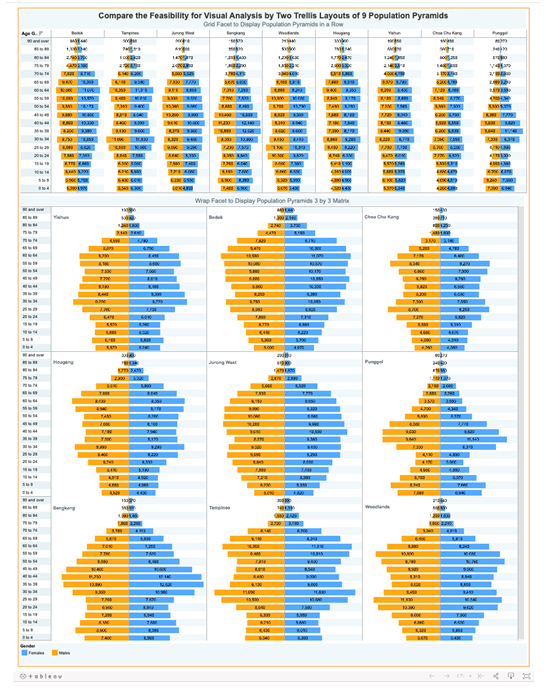

The Original Visualization Source: https://public.tableau.com/app/profile/joseph.zexeong.tan/viz/SingaporePopulationPyramindJun2022v1_3/trel3x3_d?publish=yes
Clarity
The Original Visualization shows 2 separate Age-Pyramid Trellis Chart that shows the same message. Two sets of visualization normally indicate that they visualize two different messages that may it be independent of each other or connected. The issue with the dashboard is that both sets indicate the same message just in a different format. This raises either confusion to the reader and a form of redundancy that can be best allocated to something else.
3x3 Trellis Chart limits the visualization to only 9 Age-Sex Pyramids. Limited and focused visualizations are normally selected under a criteria. This criteria may be in terms of highest population cumulative or selective. The original visualization shows no indication of the criteria chosen to only visualize 9 areas and may only be concluded as a random selection.
3x3 Trellis Chart lacks y-axis labels. Taking to consideration that the Trellis Charts is a stand alone visualization, the lack of y-axis label reduces the clarity of the y-axis values. Furthermore, both Trellis Charts lack x-axis values and labels but make up for it through text values per bar. In terms of clarity, one can argue that the lack of x-axis may confuse the reader due to the text values having no reference while others say the taxt vales are enough to compensate the lack of x-axis.
Aesthetic
Text Values center bar alignment makes reading the values difficult. Due to the mismatched alignment of the text values brought abut by the central alignment placement in the bar chart makes reading the values difficult as the reader cannot simply scroll down and read the values, not mention creates unnecessary confusion in the graph.
Text Values on each Bar Chart overwhelms the visualization. More than the mismatch alignment, the number of the text values in the chart saturates the charts and makes it “noisy”. The text values fill the dashboard with a lot of numbers that is makes the labels and visuals difficult to look at and interpret.
Horizontally arranged Trellis Chart limits and squeezes the Age-Sex Pyramids. This visualization arrangement artificially contorts the bar length due to the lack of width space. The squeeze minimizes the visual differentiation between bar charts as such creates an illusion that some bars are of the same size.
Getting Started - Data Loading and Processing
Installing and loading the required libraries
Before we get started, it is important for us to ensure that the required R packages have been installed.
Importing Data
This code chunk is to import the data from respopagesextod2022.csv file to the Quarto/R page.
pop_data <- read_csv("data/respopagesextod2022.csv")Rows: 100928 Columns: 7
── Column specification ────────────────────────────────────────────────────────
Delimiter: ","
chr (5): PA, SZ, AG, Sex, TOD
dbl (2): Pop, Time
ℹ Use `spec()` to retrieve the full column specification for this data.
ℹ Specify the column types or set `show_col_types = FALSE` to quiet this message.The CSV File contains the following columns:
| COLUMN NAME | DATA TYPE | DESCRIPTION |
|---|---|---|
| Planning Area (PA) | Character | Distinct Planning Areas in Singapore designated and mapped by the Government of Singapore |
| Subzone (SZ) | Character | Sub-areas within each Planning Areas |
| Age Group (AG) | Character | Sets of population age group by 5 (ex 0-4, 5-9, etc) |
| Sex | Character | Binary biological identifier of gender |
| Type of Dwelling (TOD) | Character | Available dwelling types in Sinagpore |
| Population (Pop) | Numerical | Population per category |
| Time | Numerical | Year -> 2022 |
Data Exploration and Cleaning
This section is to check incorrect and missing values in the data set.
skimr::skim(pop_data)| Name | pop_data |
| Number of rows | 100928 |
| Number of columns | 7 |
| _______________________ | |
| Column type frequency: | |
| character | 5 |
| numeric | 2 |
| ________________________ | |
| Group variables | None |
Variable type: character
| skim_variable | n_missing | complete_rate | min | max | empty | n_unique | whitespace |
|---|---|---|---|---|---|---|---|
| PA | 0 | 1 | 4 | 23 | 0 | 55 | 0 |
| SZ | 0 | 1 | 4 | 29 | 0 | 332 | 0 |
| AG | 0 | 1 | 6 | 11 | 0 | 19 | 0 |
| Sex | 0 | 1 | 5 | 7 | 0 | 2 | 0 |
| TOD | 0 | 1 | 6 | 39 | 0 | 8 | 0 |
Variable type: numeric
| skim_variable | n_missing | complete_rate | mean | sd | p0 | p25 | p50 | p75 | p100 | hist |
|---|---|---|---|---|---|---|---|---|---|---|
| Pop | 0 | 1 | 40.44 | 125.73 | 0 | 0 | 0 | 20 | 2300 | ▇▁▁▁▁ |
| Time | 0 | 1 | 2022.00 | 0.00 | 2022 | 2022 | 2022 | 2022 | 2022 | ▁▁▇▁▁ |
Create Age-Sex Pyramid
This section explores the creation of an Age-Sex Pyramid.
Exploration of y-axis Data

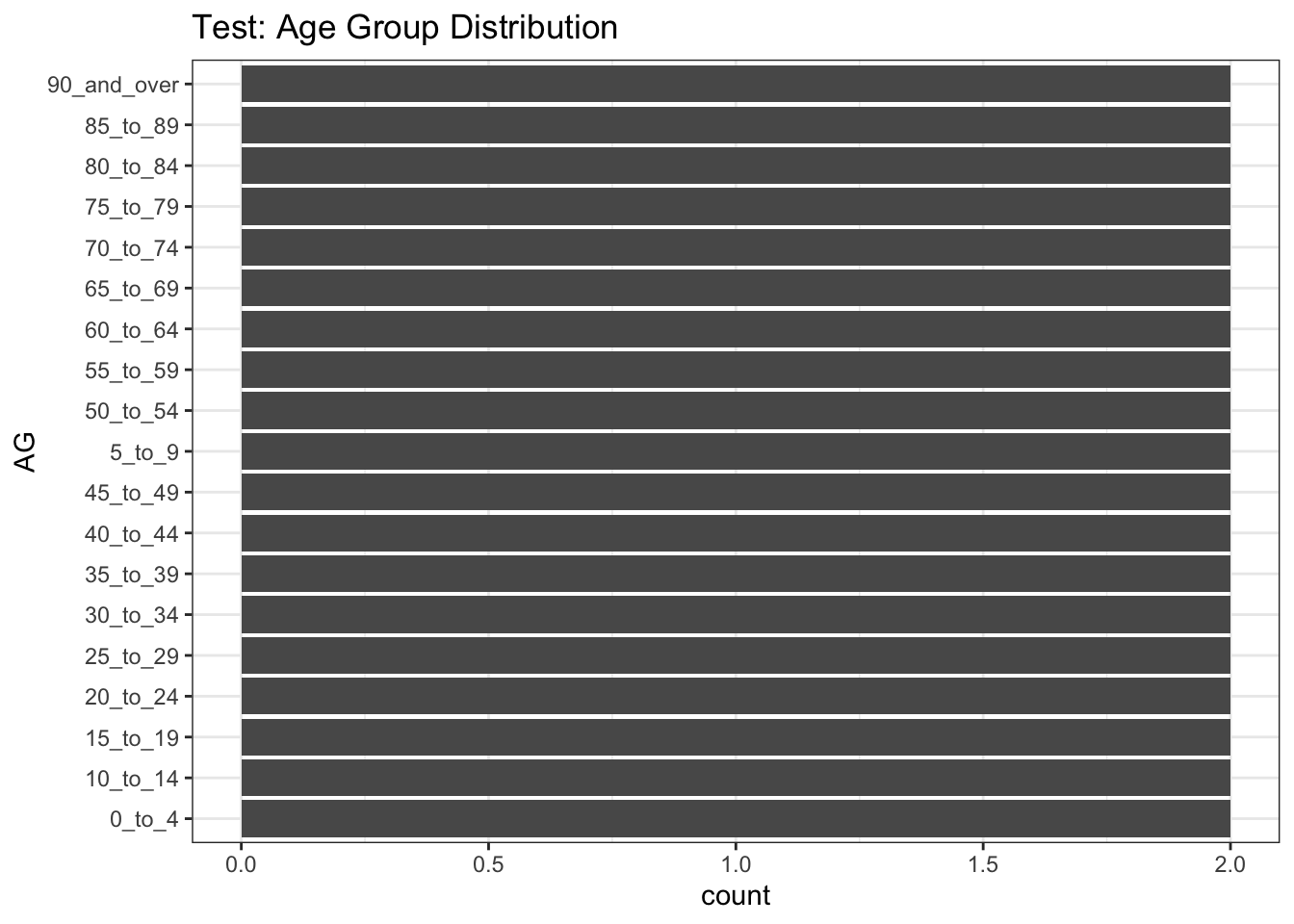

Exp1 <- pop_data %>%
filter(PA == "Ang Mo Kio") %>%
group_by(AG, Sex) %>%
summarise(`sum_pop` = sum(`Pop`), n = n()) %>%
ungroup()`summarise()` has grouped output by 'AG'. You can override using the `.groups`
argument.ggplot(data = Exp1,
aes(y = AG)) +
geom_bar() +
theme_bw() +
ggtitle("Test: Age Group Distribution")
Based on the y-axis (Age Group), 2 issues are noticed:
Each Age Group is written with an underscore (“_”) instead of a space in between each word/number
The values are organized alphabetically with consideration of the starting value (number or alphabet). As such “5_to_9” came before “45_to_49”
Correcting Age Labels
pop_data$AG <- gsub("_", " ", pop_data$AG, fixed = TRUE)Correcting Sequence
age_correct <- c("0 to 4", "5 to 9", "10 to 14", "15 to 19", "20 to 24", "25 to 29", "30 to 34", "35 to 39", "40 to 44", "45 to 49", "50 to 54", "55 to 59", "60 to 64", "65 to 69", "70 to 74", "75 to 79", "80 to 84", "85 to 89", "90 and over")
pop_sg <- pop_data %>%
group_by(AG, Sex) %>%
summarise(`sum_pop` = sum(`Pop`)) %>%
mutate(AG = factor(AG, levels = age_correct)) %>%
arrange(AG) %>%
ungroup()`summarise()` has grouped output by 'AG'. You can override using the `.groups`
argument.pop_sg <- pop_sg %>%
mutate(pct = scales::percent((sum_pop/sum(sum_pop)), accuracy = 0.01),
res = str_c(sum_pop, ", ", pct))
pop_pa <- pop_data %>%
group_by(PA, AG, Sex) %>%
summarise(`sum_pop` = sum(`Pop`)) %>%
mutate(AG = factor(AG, levels = age_correct)) %>%
arrange(AG) %>%
ungroup()`summarise()` has grouped output by 'PA', 'AG'. You can override using the
`.groups` argument.pop_pa <- pop_pa %>%
mutate(pct = scales::percent((sum_pop/sum(sum_pop)), accuracy = 0.01),
res = str_c(sum_pop, ", ", pct))Creating a Age-Sex Pyramid
This section explores the visualization of an Age-Sex Pyramid.
Note
This section will be using the total Singapore data (cummulative of all Planning Area)
SG_Pyr <- ggplot(pop_sg,
aes(x = ifelse(Sex == "Males",
yes = sum_pop*(-1),
no = sum_pop),
y = AG,
fill = Sex)) +
geom_col() +
scale_x_continuous(limits = c(-170000, 170000),
breaks = seq(-200000, 200000, 50000),
labels = paste0(
as.character(
c(seq(200, 0, -50),
seq(50, 200, 50))),
"k")) +
scale_y_discrete(expand = expansion(mult = c(0, 0.01))) +
labs (x = "Count of Population",
y = "Age Group",
fill = "Gender",
title = "Singapore Population Pyramid 2022",
subtitle = "Distribution of gender and age groups",
caption = "Data Source : Singstat.gov.sg, June 2022") +
theme_bw() +
theme(plot.title = element_text(size = 14,
colour = "#424242",
face = "bold",
hjust = 0.5),
plot.subtitle = element_text(size = 8,
colour = "#424242",
hjust = 0.5),
plot.caption = element_text(size = 5,
colour = "#424242",
hjust = 0),
axis.ticks = element_line(colour = "#424242",
linewidth = 0.1),
axis.title.y = element_text(angle = 0,
size = 8,
colour = "#424242",
face = "bold",
vjust = 1.05,
hjust = 1,
margin = margin(r = -40, l = 10)),
axis.title.x = element_text(size = 8,
colour = "#424242",
face = "bold"),
axis.text.x = element_text(size = 7,
colour = "#424242"),
axis.text.y = element_text(size = 7,
colour = "#424242"),
legend.position = "bottom",
legend.justification = "left",
legend.text = element_text(size = 7,
colour = "#424242"),
legend.title = element_text(size = 8,
colour = "#424242"),
panel.grid.major = element_line(linewidth = rel(0.5)),
panel.grid.minor = element_blank(),
plot.background = element_rect(fill = "#ffffff"),
legend.background = element_rect(fill = "#ffffff"),
legend.margin = margin(t = -10),
panel.border = element_rect(colour = "#424242",
linewidth = 0.3))
SG_Pyr
Creating A Trellis Age-Sex Pyramid
This section explores the visualization of an Age-Sex Pyramid within a Trellis Chart. Each Pyramid indicates per Planning Area.
Removing Planning Areas without Values
It was previously identified that 26 out of 55 Planning Areas have no value/data. To maximize space, 9 Planning Areas will be retained and filtered.
Note
Due to the limitations of space in r generated visualization in quarto only a limited number of planning areas can be shown
t_pop_pa <- pop_data %>%
group_by(PA) %>%
summarise(`sum_pop` = sum(`Pop`)) %>%
ungroup()
trellis9 <- arrange(t_pop_pa, desc(t_pop_pa$sum_pop)) %>%
slice(1:9) %>%
select(PA)
trellis9_filter <- pop_pa %>%
filter(pop_pa$PA %in% trellis9$PA)Creating Trellis Chart Age-Sex Pyramid

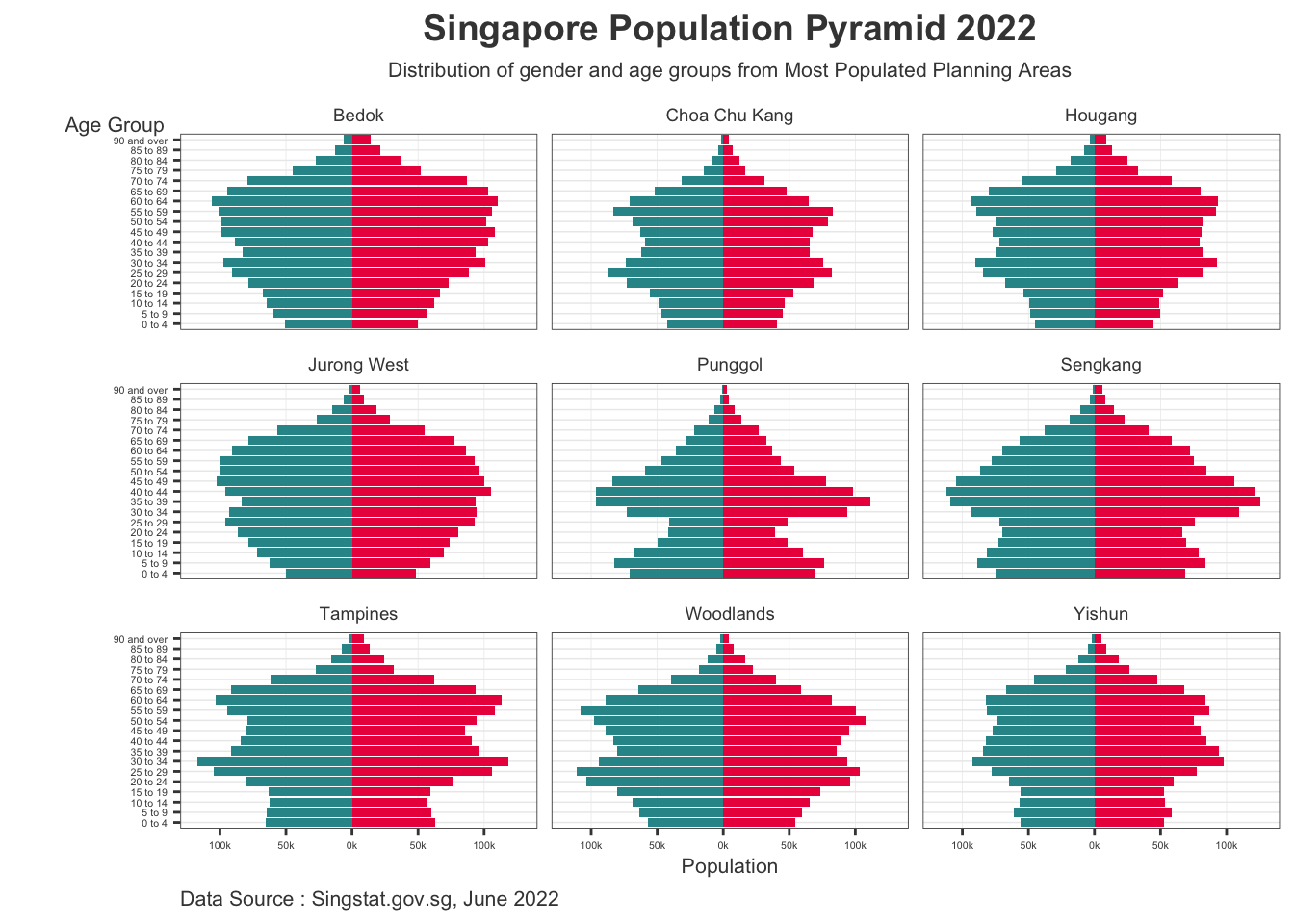

PA_Pyr <- ggplot() +
geom_bar(data = subset(trellis9_filter,
Sex == "Males"),
aes(x = AG,
y = -sum_pop,
fill = PA),
stat = "identity",
fill = "#2E9598") +
geom_bar(data = subset(trellis9_filter,
Sex == "Females"),
aes(x = AG,
y = sum_pop,
fill = PA),
stat = "identity",
fill = "#EC1B4B") +
coord_flip() +
facet_wrap(.~ PA,
drop = FALSE,
ncol = 3,
scales = "fixed")+
scale_y_continuous(limits = c(-13000, 13000),
breaks = seq(-20000, 20000, 5000),
labels = paste0(
as.character(
c(seq(200, 0, -50),
seq(50, 200, 50))),
"k"),
expand = expansion(mult = c(0, .04)))+
labs (y = "Population",
x = "Age Group",
fill = "Gender",
title = "Singapore Population Pyramid 2022",
subtitle = "Distribution of gender and age groups from Most Populated Planning Areas",
caption = "Data Source : Singstat.gov.sg, June 2022") +
theme_bw() +
theme(plot.title = element_text(size = 14,
colour = "#424242",
face = "bold",
hjust = 0.5),
plot.subtitle = element_text(size = 8,
colour = "#424242",
hjust = 0.5),
plot.caption = element_text(size = 8,
colour = "#424242",
hjust = 0),
strip.text = element_text(size = 7,
colour = "#424242"),
strip.background = element_blank(),
axis.ticks = element_line(colour = "#424242",
linewidth = 0.5),
axis.ticks.x = element_line(colour = "#424242",
linewidth = 0.5),,
axis.title.y = element_text(angle = 0,
size = 8,
colour = "#424242",
vjust = 1.025,
hjust = 0.7,
margin = margin(r = -20, l = 20)),
axis.title.x = element_text(size = 8,
colour = "#424242"),
axis.text.x = element_text(size = 4,
colour = "#424242"),
axis.text.y = element_text(size = 4,
colour = "#424242"),
legend.position = "bottom",
legend.justification = "left",
legend.text = element_text(size = 5,
colour = "#424242"),
legend.title = element_text(size = 8,
colour = "#424242"),
panel.grid.major = element_line(linewidth = rel(0.5)),
panel.grid.major.x = element_line(linewidth = rel(0.5)),
panel.grid.minor = element_blank(),
plot.background = element_rect(fill = "#ffffff"),
legend.background = element_rect(fill = "#ffffff"),
legend.margin = margin(t = -10),
panel.border = element_rect(colour = "#424242",
linewidth = 0.3))
PA_Pyr
Learning from Practice
Clarity
With the subtitle indicating that these Planning Areas are the most populous in Singapore, the reader is more clear of the message. Not to mention that axis labels and ticks are present to further provide clarity.
Due to the limitation of space, a 3x3 Trellis Chart may be the maximum representation that can at least maximize readability. Adding more Age-Sex Pyramids will diminish readability and make the chart more difficult to interpret. Furthermore, the limits in size also affects the font sizes, thus reducing clarity and readability.
Aesthetic
- The removal of bar numbers lessens the elements present in the visualization and makes in more pleasing to look at. This less “noisy” visualization greatly improves its aesthetic and design.
Interactivity
- Crafting the visualization in R Studios is more difficult and restrictive as the limits in visual size restrict creative and engaging visuals. Furthermore, transitioning to interactivity may be difficult in the future as the limitations may complicate it further. Future visualization may be better crafted in R Shiny instead of quarto/R Studios.
Further Improvements and Developments
This section improves upon the original visualization by increasing size and adding interactivity.

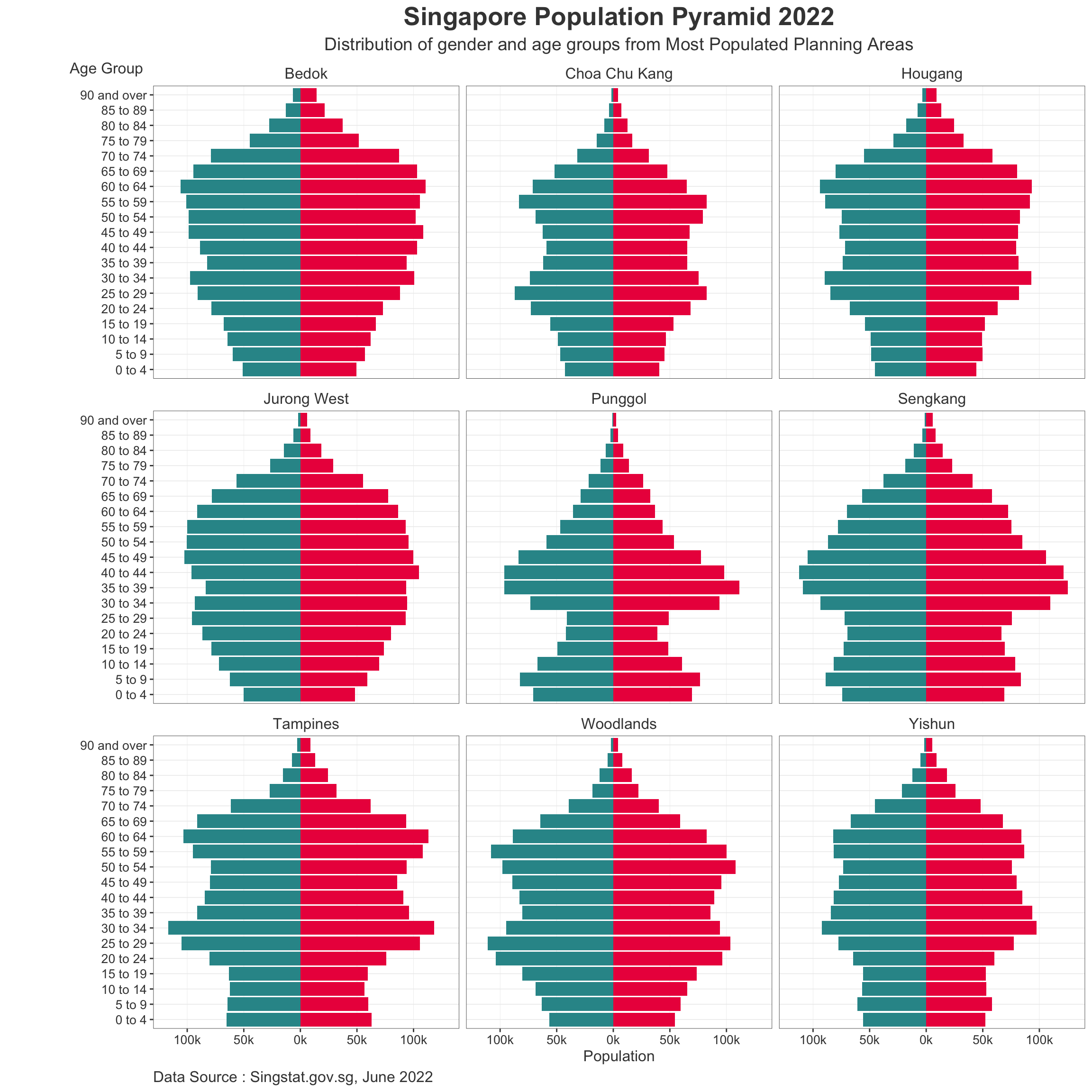

Increasing Visualization Size
Code
PA_Pyr <- ggplot() +
geom_bar(data = subset(trellis9_filter,
Sex == "Males"),
aes(x = AG,
y = -sum_pop,
fill = PA),
stat = "identity",
fill = "#2E9598") +
geom_bar(data = subset(trellis9_filter,
Sex == "Females"),
aes(x = AG,
y = sum_pop,
fill = PA),
stat = "identity",
fill = "#EC1B4B") +
coord_flip() +
facet_wrap(.~ PA,
drop = FALSE,
ncol = 3,
scales = "fixed")+
scale_y_continuous(limits = c(-13000, 13000),
breaks = seq(-20000, 20000, 5000),
labels = paste0(
as.character(
c(seq(200, 0, -50),
seq(50, 200, 50))),
"k"),
expand = expansion(mult = c(0, .04)))+
labs (y = "Population",
x = "Age Group",
fill = "Gender",
title = "Singapore Population Pyramid 2022",
subtitle = "Distribution of gender and age groups from Most Populated Planning Areas",
caption = "Data Source : Singstat.gov.sg, June 2022") +
theme_bw() +
theme(plot.title = element_text(size = 20,
colour = "#424242",
face = "bold",
hjust = 0.5),
plot.subtitle = element_text(size = 14,
colour = "#424242",
hjust = 0.5),
plot.caption = element_text(size = 12,
colour = "#424242",
hjust = 0),
strip.text = element_text(size = 12,
colour = "#424242"),
strip.background = element_blank(),
axis.ticks = element_line(colour = "#424242",
linewidth = 0.5),
axis.ticks.x = element_line(colour = "#424242",
linewidth = 0.5),,
axis.title.y = element_text(angle = 0,
size = 12,
colour = "#424242",
vjust = 1.025,
hjust = 0.7,
margin = margin(r = -50, l = 50)),
axis.title.x = element_text(size = 12,
colour = "#424242"),
axis.text.x = element_text(size = 10,
colour = "#424242"),
axis.text.y = element_text(size = 10,
colour = "#424242"),
legend.position = "bottom",
legend.justification = "left",
legend.text = element_text(size = 12,
colour = "#424242"),
legend.title = element_text(size = 12,
colour = "#424242"),
panel.grid.major = element_line(linewidth = rel(0.5)),
panel.grid.major.x = element_line(linewidth = rel(0.5)),
panel.grid.minor = element_blank(),
plot.background = element_rect(fill = "#ffffff"),
legend.background = element_rect(fill = "#ffffff"),
legend.margin = margin(t = -10),
panel.border = element_rect(colour = "#424242",
linewidth = 0.3))
PA_Pyr
Note
Additional Codes:
To Increase Visualization size:
#| fig-height: 12 #| fig-width: 12
To allow option to hide codes upon render:
#| code-fold: true
Adding Visualization
This section applies the ggiraph package to add interactive visualization per Bar within the Age Sex Pyramid.
Code
PA_Pyr <- ggplot() +
geom_bar_interactive(data = subset(trellis9_filter,
Sex == "Males"),
aes(x = AG,
y = -sum_pop,
fill = PA,
tooltip = paste0("Sex= ", Sex,
"\n Age Group= ", AG,
"\n Population= ", sum_pop)),
stat = "identity",
fill = "#2E9598") +
geom_bar_interactive(data = subset(trellis9_filter,
Sex == "Females"),
aes(x = AG,
y = sum_pop,
fill = PA,
tooltip = paste0("Sex= ", Sex,
"\n Age Group= ", AG,
"\n Population= ", sum_pop)),
stat = "identity",
fill = "#EC1B4B") +
coord_flip() +
facet_wrap(.~ PA,
drop = FALSE,
ncol = 3,
scales = "fixed")+
scale_y_continuous(limits = c(-13000, 13000),
breaks = seq(-20000, 20000, 5000),
labels = paste0(
as.character(
c(seq(200, 0, -50),
seq(50, 200, 50))),
"k"),
expand = expansion(mult = c(0, .04)))+
labs (y = "Population",
x = "Age Group",
fill = "Gender",
title = "Singapore Population Pyramid 2022",
subtitle = "Distribution of gender and age groups from Most Populated Planning Areas",
caption = "Data Source : Singstat.gov.sg, June 2022") +
theme_bw() +
theme(plot.title = element_text(size = 36,
colour = "#424242",
face = "bold",
hjust = 0.5),
plot.subtitle = element_text(size = 28,
colour = "#424242",
hjust = 0.5),
plot.caption = element_text(size = 24,
colour = "#424242",
hjust = 0),
strip.text = element_text(size = 24,
colour = "#424242"),
strip.background = element_blank(),
axis.ticks = element_line(colour = "#424242",
linewidth = 0.5),
axis.ticks.x = element_line(colour = "#424242",
linewidth = 0.5),,
axis.title.y = element_text(angle = 0,
size = 24,
colour = "#424242",
vjust = 1.025,
hjust = 0.7,
margin = margin(r = -90, l = 90)),
axis.title.x = element_text(size = 24,
colour = "#424242"),
axis.text.x = element_text(size = 20,
colour = "#424242"),
axis.text.y = element_text(size = 20,
colour = "#424242"),
legend.position = "bottom",
legend.justification = "left",
legend.text = element_text(size = 24,
colour = "#424242"),
legend.title = element_text(size = 24,
colour = "#424242"),
panel.grid.major = element_line(linewidth = rel(0.5)),
panel.grid.major.x = element_line(linewidth = rel(0.5)),
panel.grid.minor = element_blank(),
plot.background = element_rect(fill = "#ffffff"),
legend.background = element_rect(fill = "#ffffff"),
legend.margin = margin(t = -10),
panel.border = element_rect(colour = "#424242",
linewidth = 0.3))
girafe(
ggobj = PA_Pyr,
width_svg = 24,
height_svg = 36*0.618
)
